Product Description

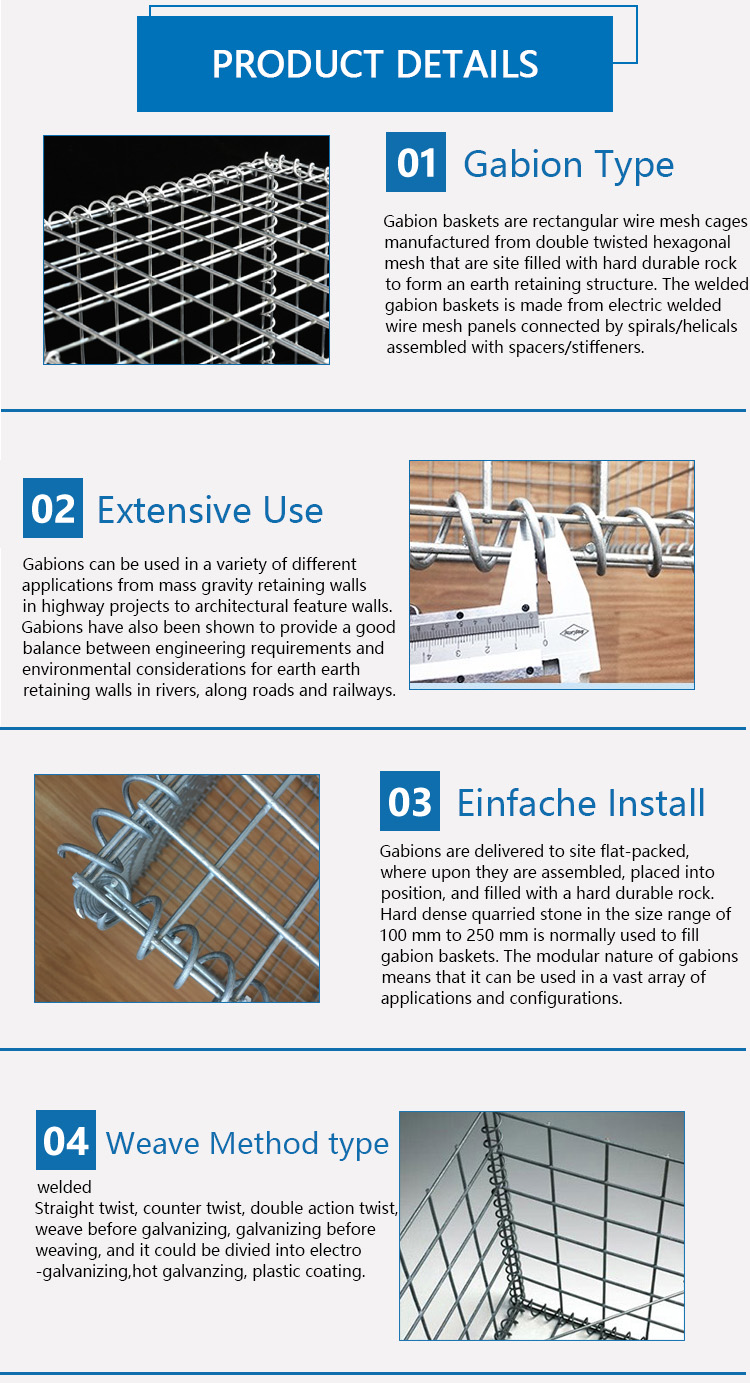

Welded Gabion box is made of galfan wire and galvanized wire. It can be moved relatively easily by a simple hand truck by a single person. Simple installation. No special technology needed. Welded wire gabion network installation fast and convenient and simple structure and beautiful, save work time saving, high work efficiency.
Welded mesh gabions are made of welded wire mesh fabrics. This type of mesh is more resistant and is hot-dip galvanized. These gabion baskets are filled with stones on a vibration table in order to achieve the maximum compactness.
Welded mesh gabions are uniformly welded and can be supplied of various sizes.
Welded gabions can be connected with other similar containers and filled with stone to form flexible and permeable structures for retaining of riverbank and soils.
The steel wire for making of welded mesh gabions is cold drawn high tensile steel zinc coated.
Features: Gabions made of welded wire fabrics offer much strength compared with woven wire gabions while they have similar flexibility.
| Normal Box sizes (m) | NO.of diaphragms(pcs) | Capacity(m³) |
| 0.5x0.5x0.5 | 0 | 0.125 |
| 1x0.5x0.5 | 0 | 0.25 |
| 1x1x0.5 | 0 | 0.5 |
| 1x1x1 | 0 | 1 |
| 1.5x0.5x0.5 | 0 | 0.325 |
| 1.5x1x0.5 | 0 | 0.75 |
| 1.5x1x1 | 0 | 1.5 |
| 2x0.5x0.5 | 1 | 0.5 |
| 2x1x0.5 | 1 | 1 |
| 2x1x1 | 1 | 2 |
| This table refers to the industry standard unit sizes; non-standard unit sizes are available in diamensions of munltiples of the mesh opening. |
| Normal Box sizes(m) | NO. of diaphragms(pcs) | Capacity per box(m³) |
| 1.0x1.0x0.5 | None | 0.5 |
| 1.0x1.0x1.0 | None | 1.0 |
| 1.5x1.0x0.5 | None | 0.75 |
| 1.5x1.0x1.0 | None | 1.5 |
| 2.0x1.0x0.5 | 1 | 1.0 |
| 2.0x1.0x1.0 | 1 | 2.0 |
| 3.0x1.0x0.5 | 2 | 1.5 |
| 3.0x1.0x0.5 | 2 | 3.0 |
| 4.0x1.0x0.5 | 3 | 2.0 |
| 4.0x1.0x1.0 | 3 | 4.0 |

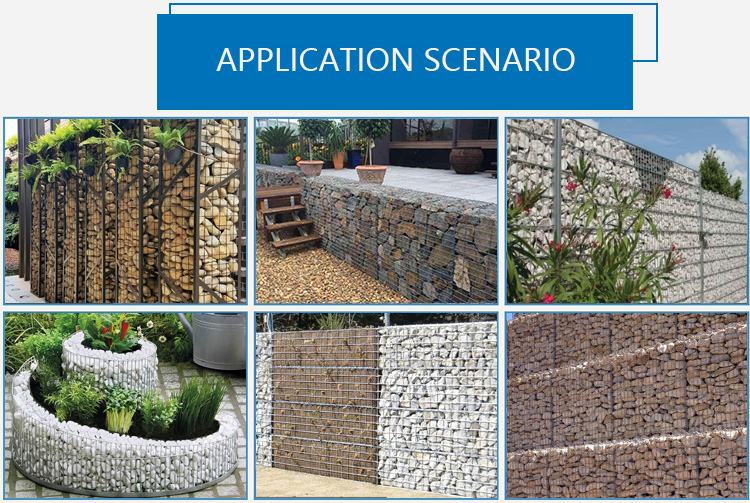

Application
It can be used as a breeding net, stadium protection fence, training ground protection fence, slope protection, green fence, river channel, construction, residential area security protection, workshop warehouse isolation and so on
